KIESERLING 110mm Peeling and straightening  Machine

Manufacture        Kieserling Germany

Model                    WDH 100

Working Range    15 to 105 mm

Bar length             max 6,000 mm

Main drive             85 kW

Cutter head           type 4 tool holder (double row) 8 tool

Straightening machine    2 roll vertical configuration

Range                    15 to 100 mm

Main roll drives     2 x 37 kW

Machine still in operation, electrics recently updated

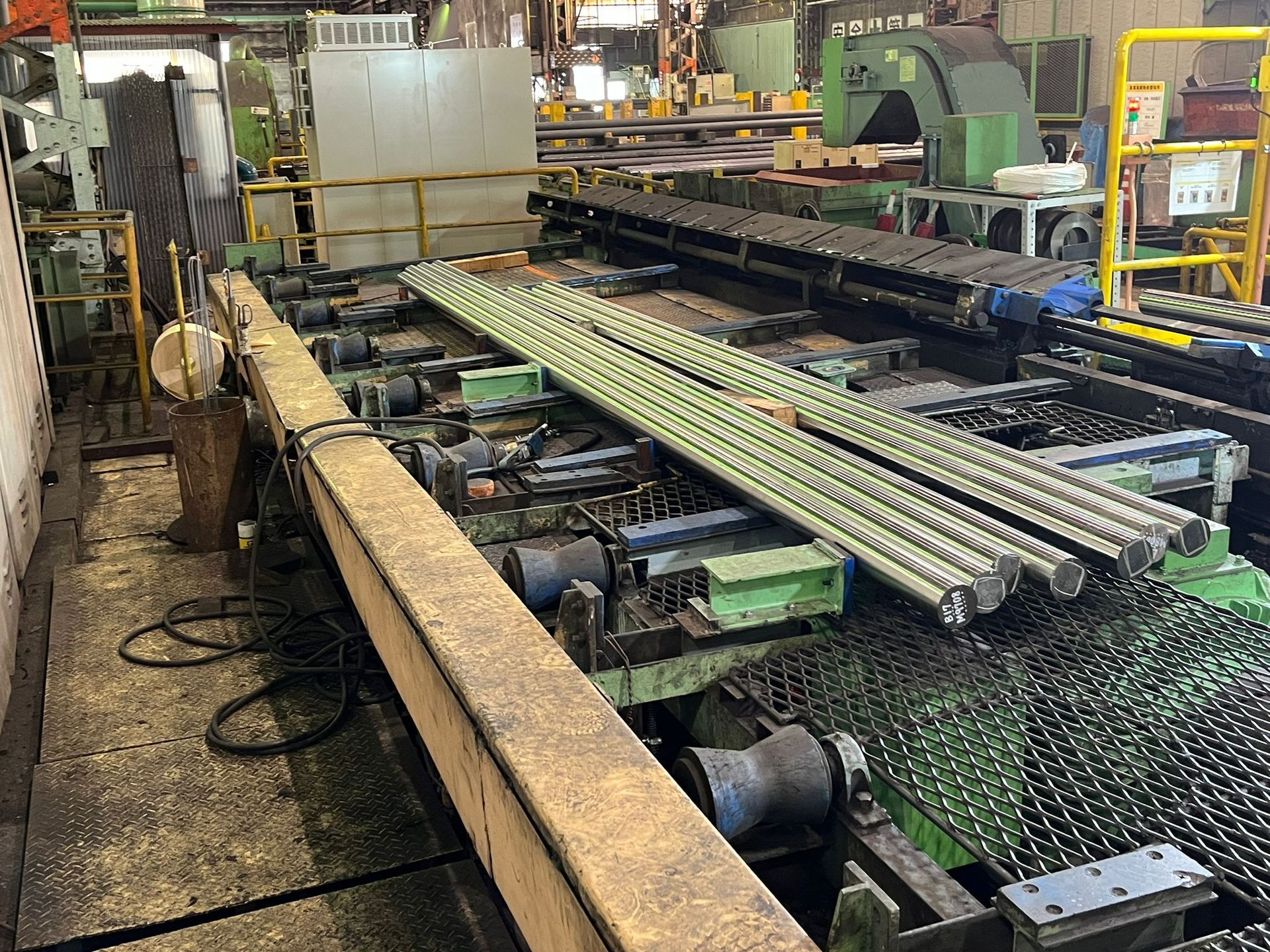

Line consists:

Loading table

Bundle unscrambler

Bar loading unit

Diablo entry rolls

4 Roll driven vertical feed unit, with hydraulic loading

Peeling head body

Swarf conveyor

Exit support roll

Exit clamping and steady unit

Discharge table

Transfer Diablo rolls to straightening machine table

Straightener entry table

Straightening machine 2 x straightening machine roll dive units Exit table Collection pockets

Electrical control system Hydraulic power unit Coolant pumps 1 set spare straightening rolls

SAS REELER Mod.RL-10

For sizes 5 to 15mm+,

The reeling machine is nearly new,

designed to be either fitted within a combined line (such as a Schumag size 1) or can be adapted for an off line use such as a straightening isle

Designed for line speeds up to 100m/min

Bar lengths of 2.8-5m

Supplied complete with motors and electrics

BULTMANN SECTION STRAIGHTERNER

Large straightener for section above 100mm

SOLD
